PRESENTING OUR FIBERTHANE BALUSTRADE SYSTEM
Balustrade is one of the finest architectural elements that exists; and we designed the absolute best balustrade product on the market. Our FiberThane® Balustrade System is a hybrid system that utilizes the strength and durability of Fiberglass, and the crisp detail of polyurethane.
FiberThane® is the only light-weight system that can span 16’ lengths without needing a newel post or column. Not only is it the strongest system available, but with our QuickInstall brackets, it is also the quickest and easiest to install. Additionally, we made sure it is the most cost-effective system you will find!

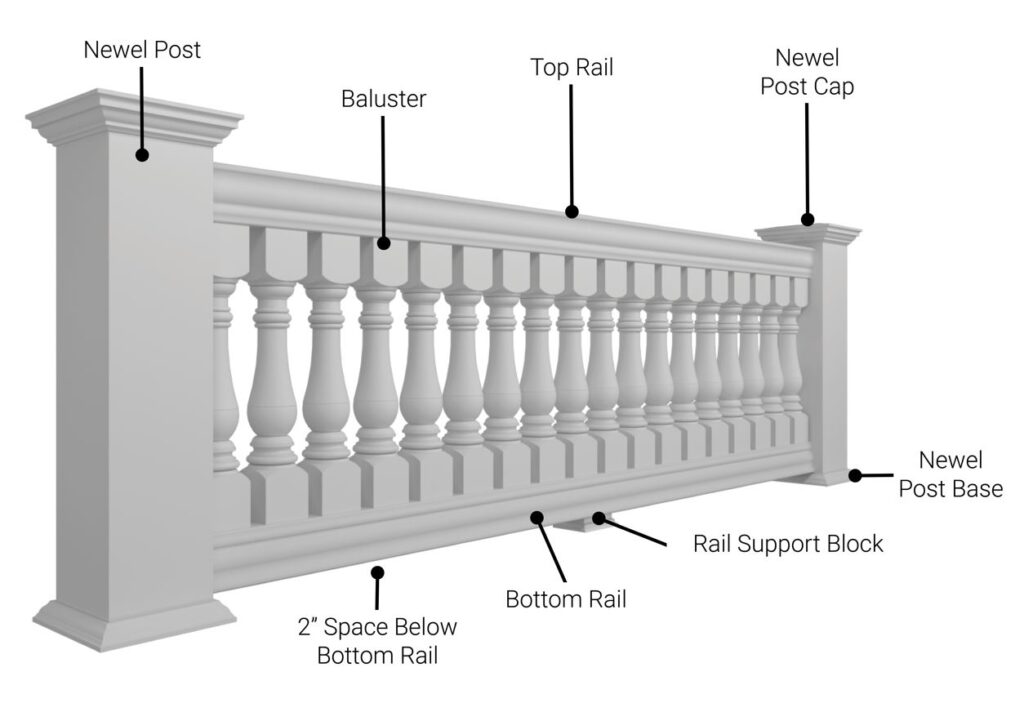

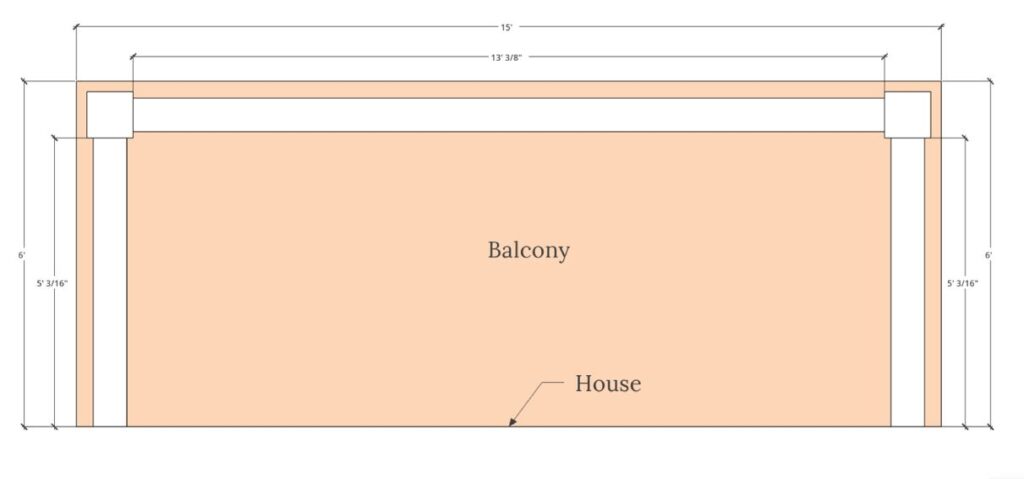

Fiberthane Planning Guide

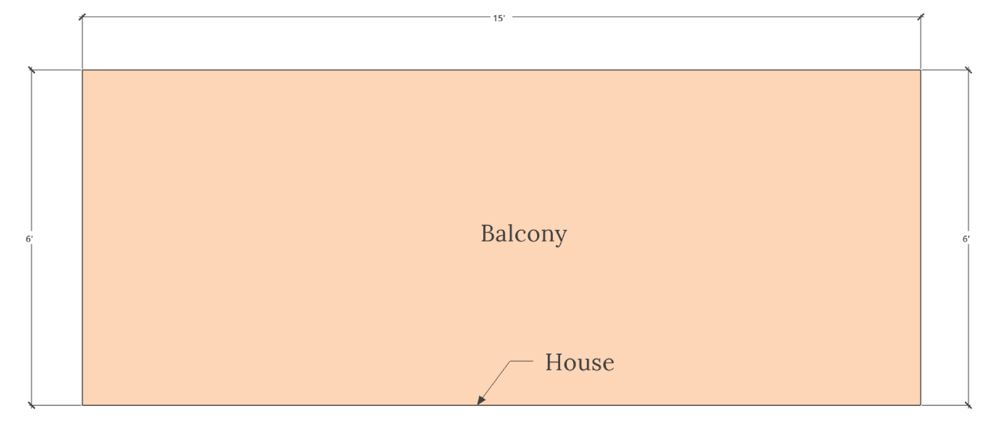

Step 1: Measure the perimeter of your project where balustrades
will be installed.

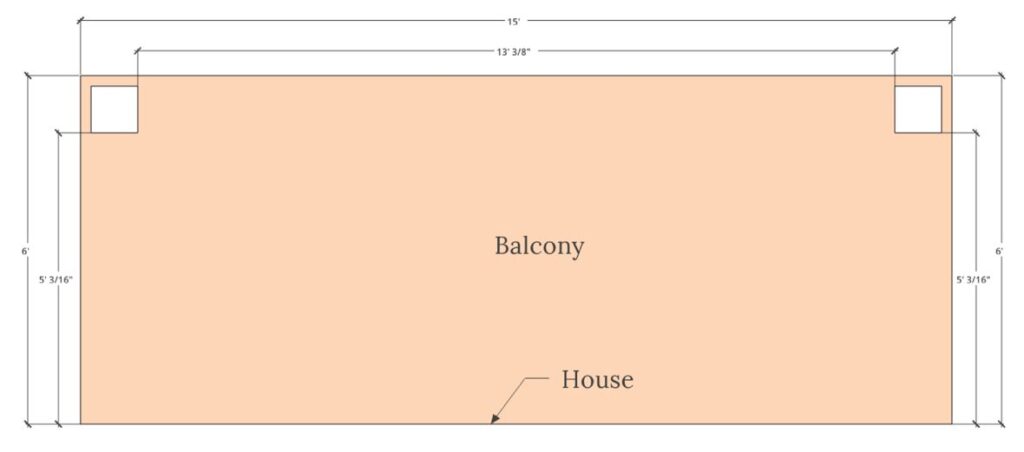

Step 2: Determine newel post locations. Newel posts are
recommended at all corners/angles, and for spans over 16’ in
length.
Step 3: Determine rail lengths. The length between the posts is the required rail length. Round up to the nearest foot when ordering

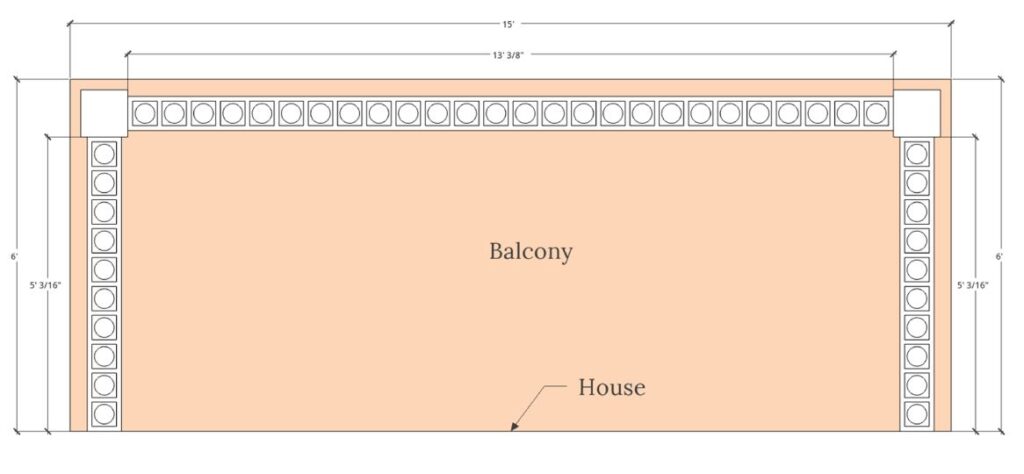

Step 4: Determine number of balusters needed. Divide the rail
length by the baluster on center spacing (OCS) to determine the number of balusters for each opening.
Need help planning?
Our project consultants provide design assistance, floor plan drawings, answer questions, and help you get the job done right. Give us a call at 800-294-1098

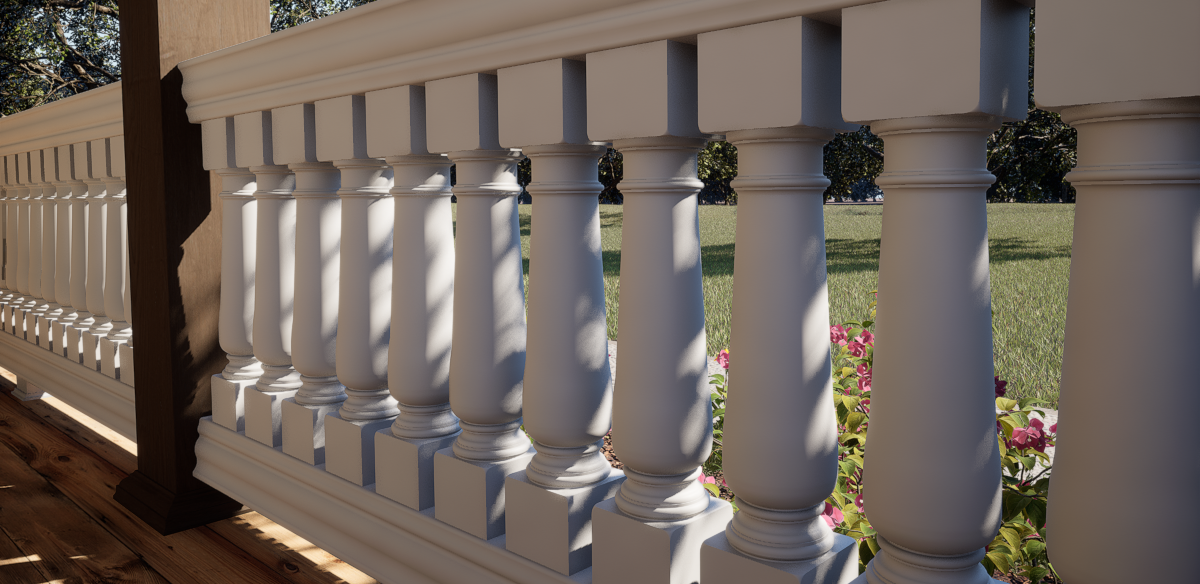

FIBERTHANE BALUSTRADE – OXFORD DESIGN
| Part Number | Width | Height | OCS | Overall Height |
|---|---|---|---|---|
| BAL05X20OX | 5″ | 20″ | 7 9/16″ | 32 1/2″ |
| BAL05X26OX | 5″ | 26″ | 7 7/16″ | 38 1/2″ |
| BAL05X30OX | 5″ | 30″ | 7 7/16″ | 42 1/2″ |

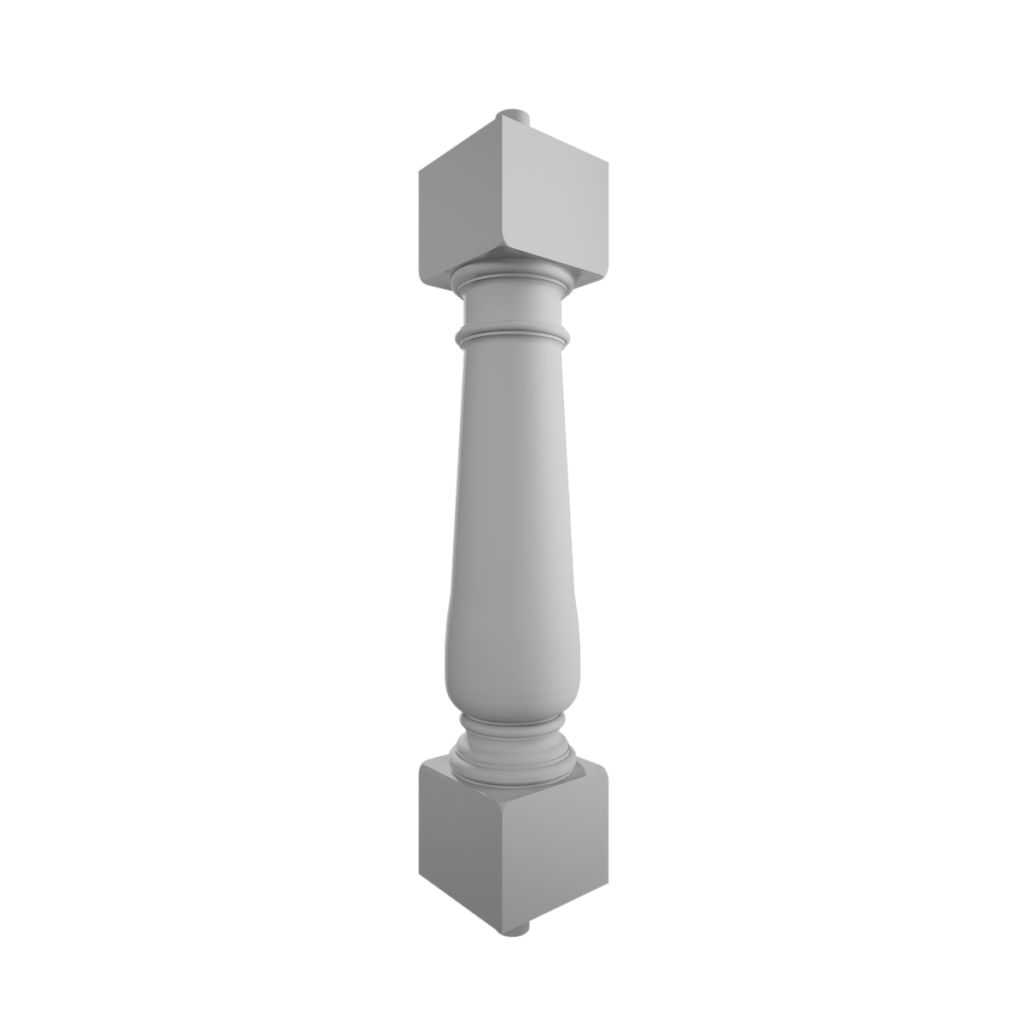

Oxford BALUSTER

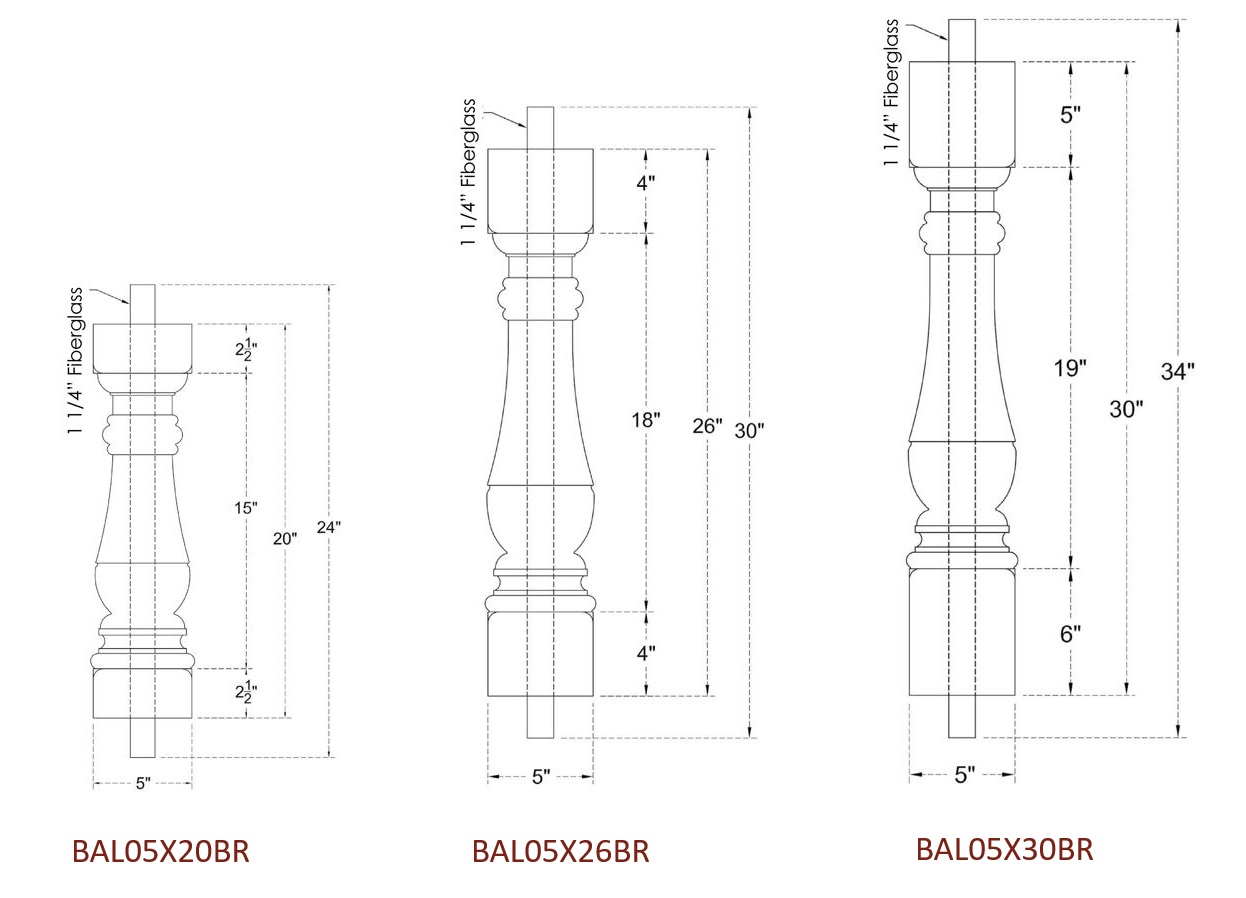

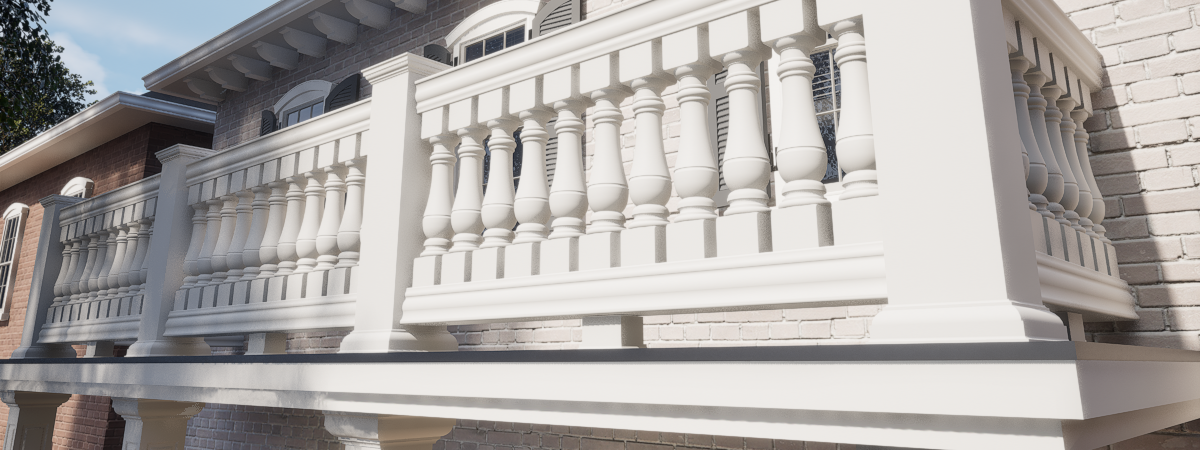

FIBERTHANE BALUSTRADE – BRADFORD DESIGN
| Part Number | Width | Height | OCS | Overall Height |
|---|---|---|---|---|
| BAL05X20BR | 5″ | 20″ | 7″ | 32 1/2″ |
| BAL05X26BR | 5″ | 26″ | 6 15/16″ | 38 1/2″ |
| BAL05X30BR | 5″ | 30″ | 6 15/16″ | 42 1/2″ |

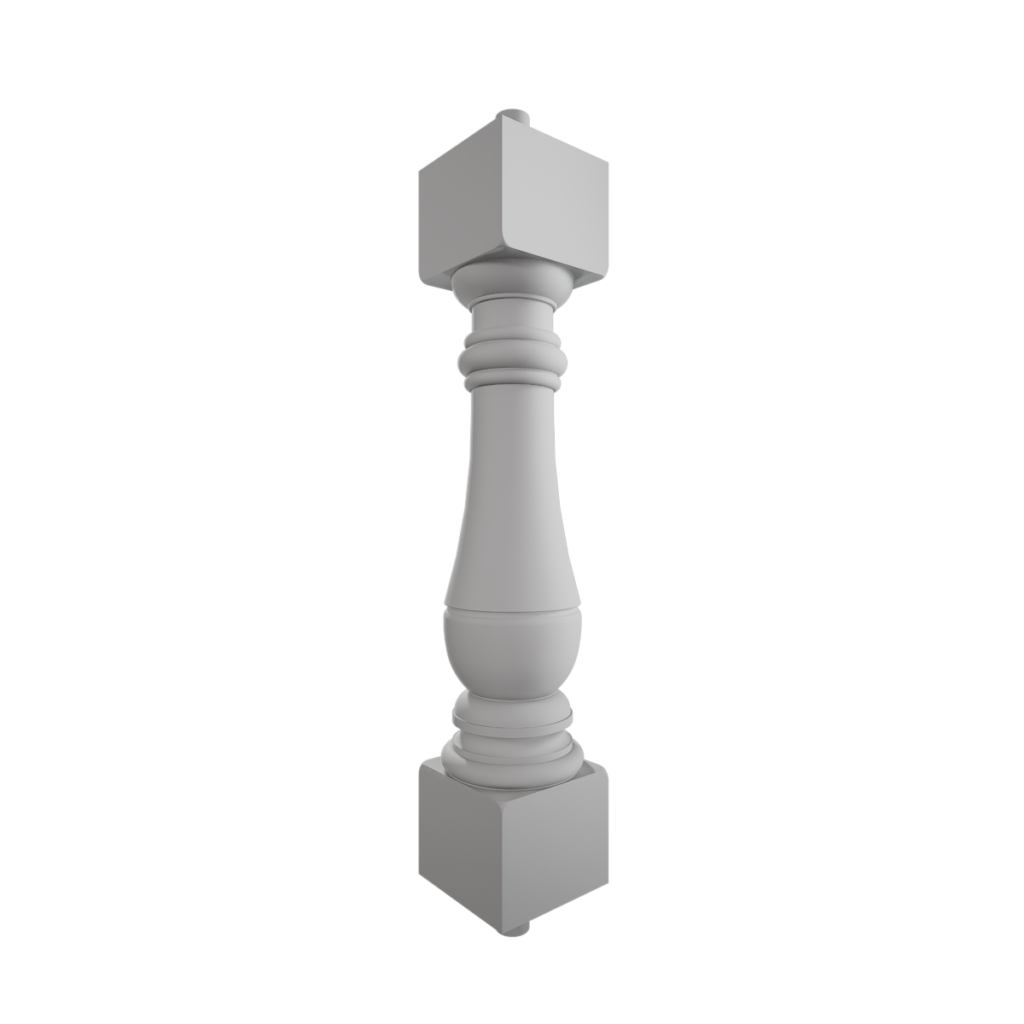

BRADFORD Baluster

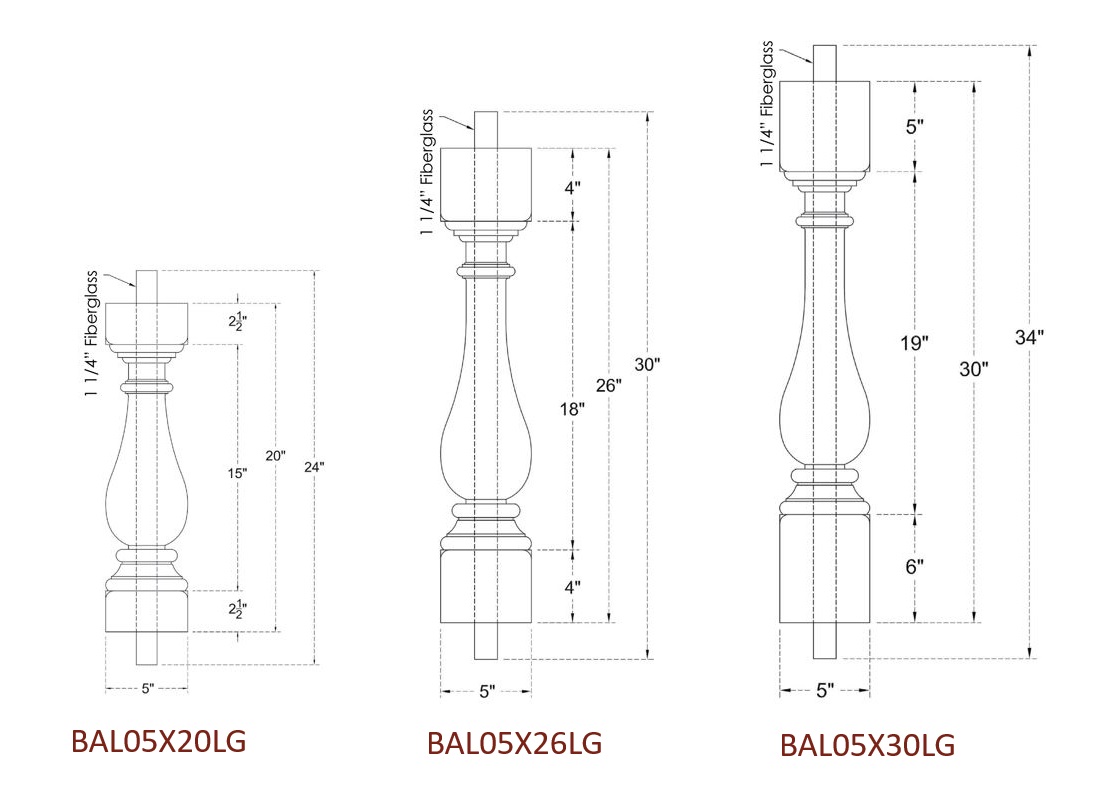

FIBERTHANE BALUSTRADE – LEGACY DESIGN
| Part Number | Width | Height | OCS | Overall Height |
|---|---|---|---|---|
| BAL05X20LG | 5″ | 20″ | 6 1/4″ | 32 1/2″ |
| BAL05X26LG | 5″ | 26″ | 6 1/16″ | 38 1/2″ |
| BAL05X30LG | 5″ | 30″ | 6 1/16″ | 42 1/2″ |

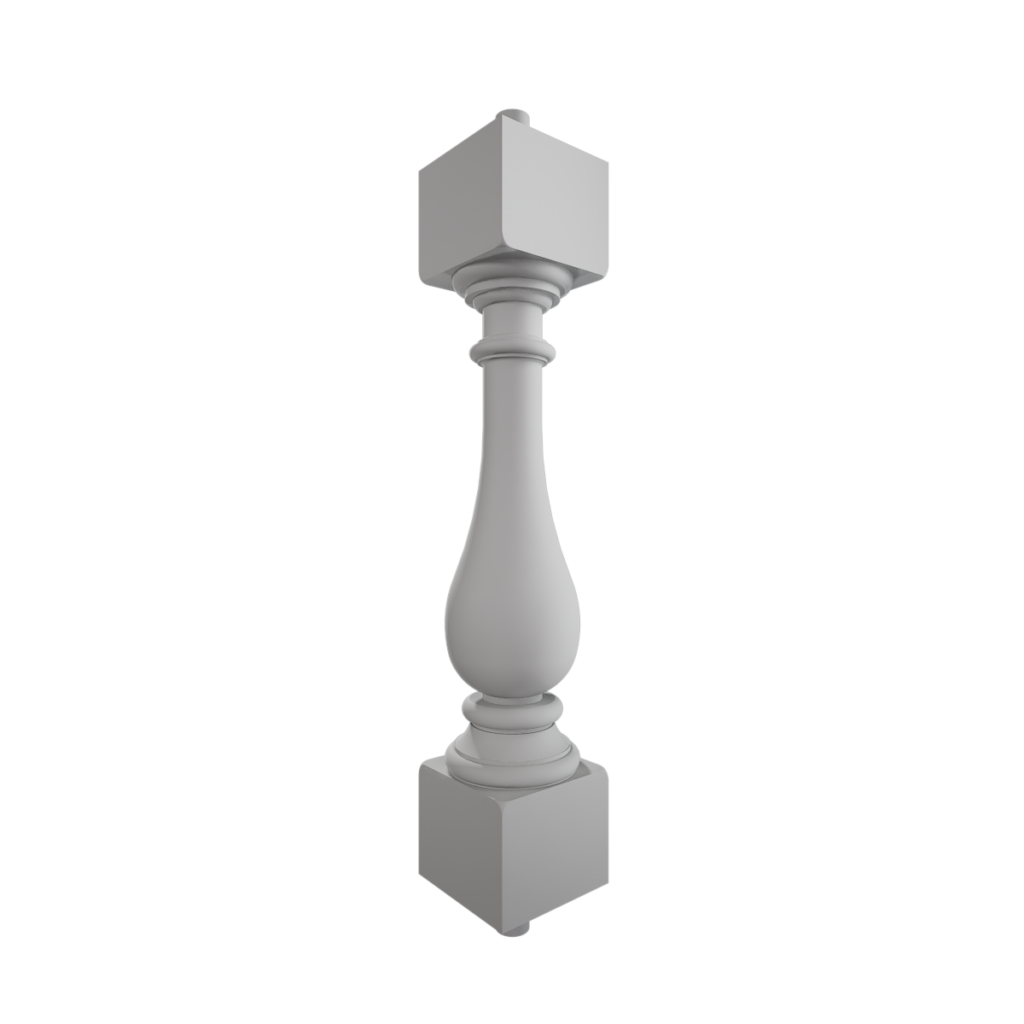

LEGACY BALUSTER

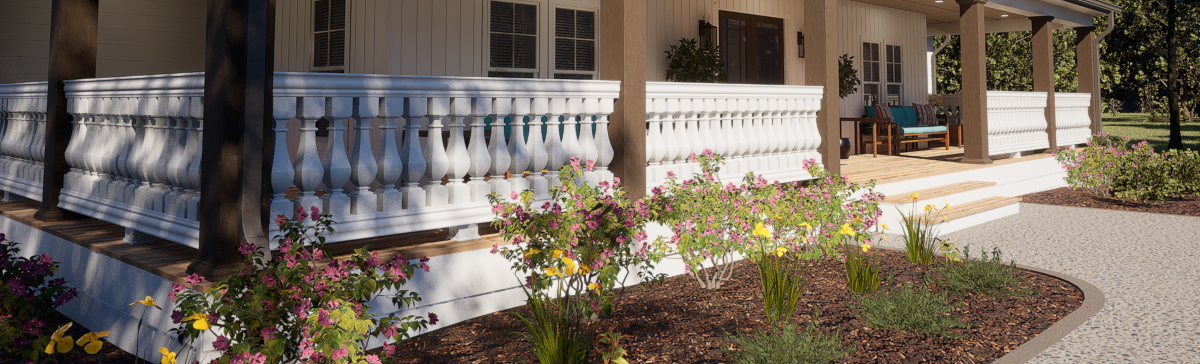

FIBERTHANE BALUSTRADE – ARCADIAN DESIGN
| Part Number | Width | Height | OCS | Overall Height |
|---|---|---|---|---|
| BAL05X20AC | 5″ | 20″ | 6 3/16″ | 32 1/2″ |
| BAL05X26AC | 5″ | 26″ | 6 1/16″ | 38 1/2″ |
| BAL05X30AC | 5″ | 30″ | 6″ | 42 1/2″ |

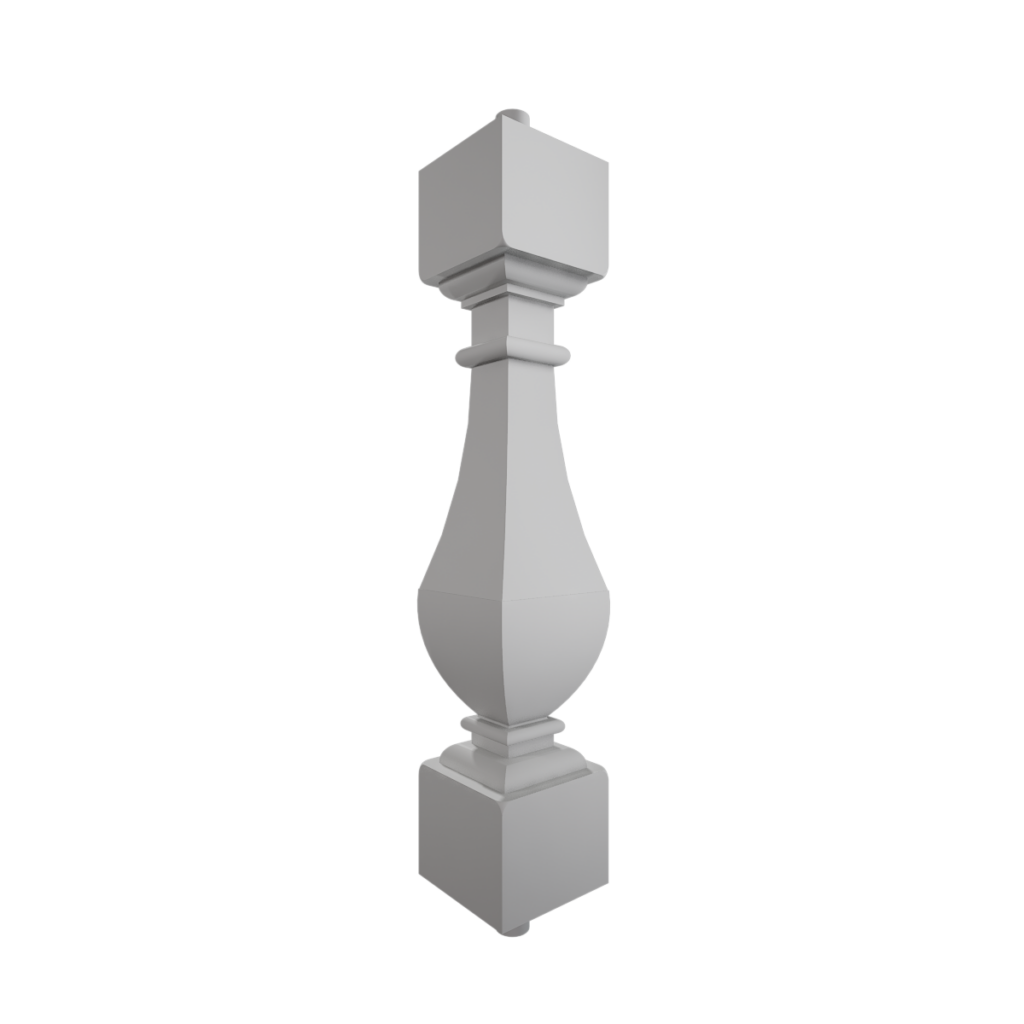

ARCADIAN BALUSTER

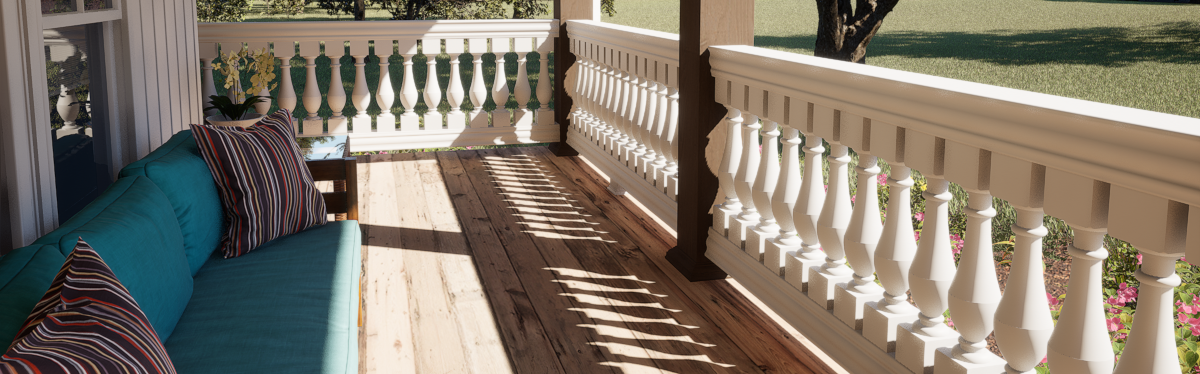

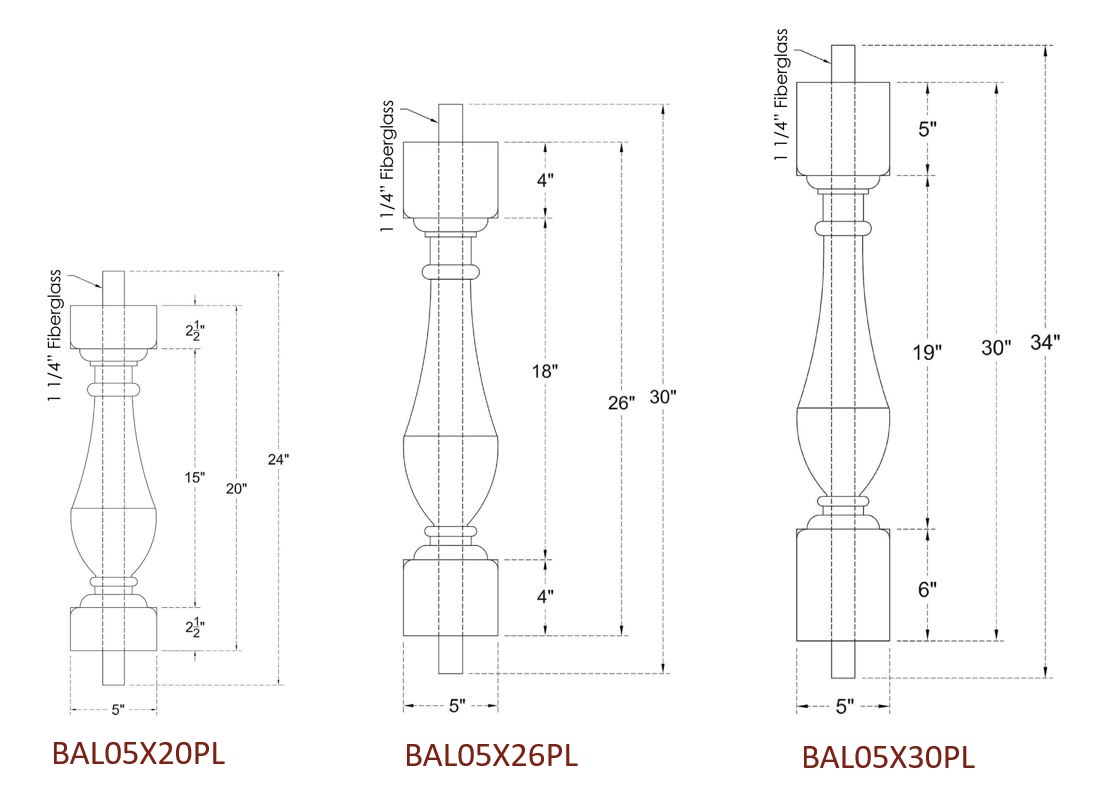

FIBERTHANE BALUSTRADE – PARKLAND SYSTEM
| Part Number | Width | Height | OCS | Overall Height |
|---|---|---|---|---|
| BAL05X20PL | 5″ | 20″ | 6 3/16″ | 32 1/2″ |
| BAL05X26PL | 5″ | 26″ | 6 1/16″ | 38 1/2″ |
| BAL05X30PL | 5″ | 30″ | 6″ | 42 1/2″ |

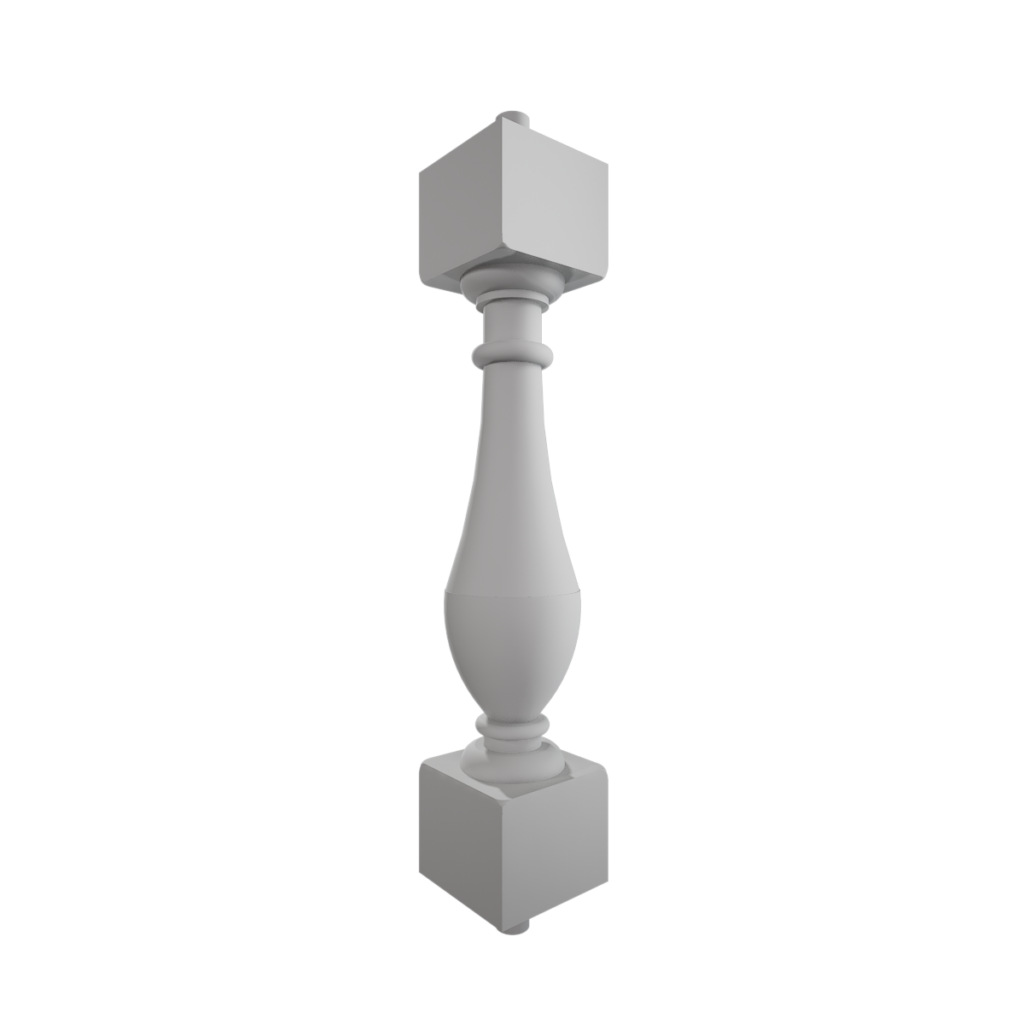

PARKLAND BALUSTER

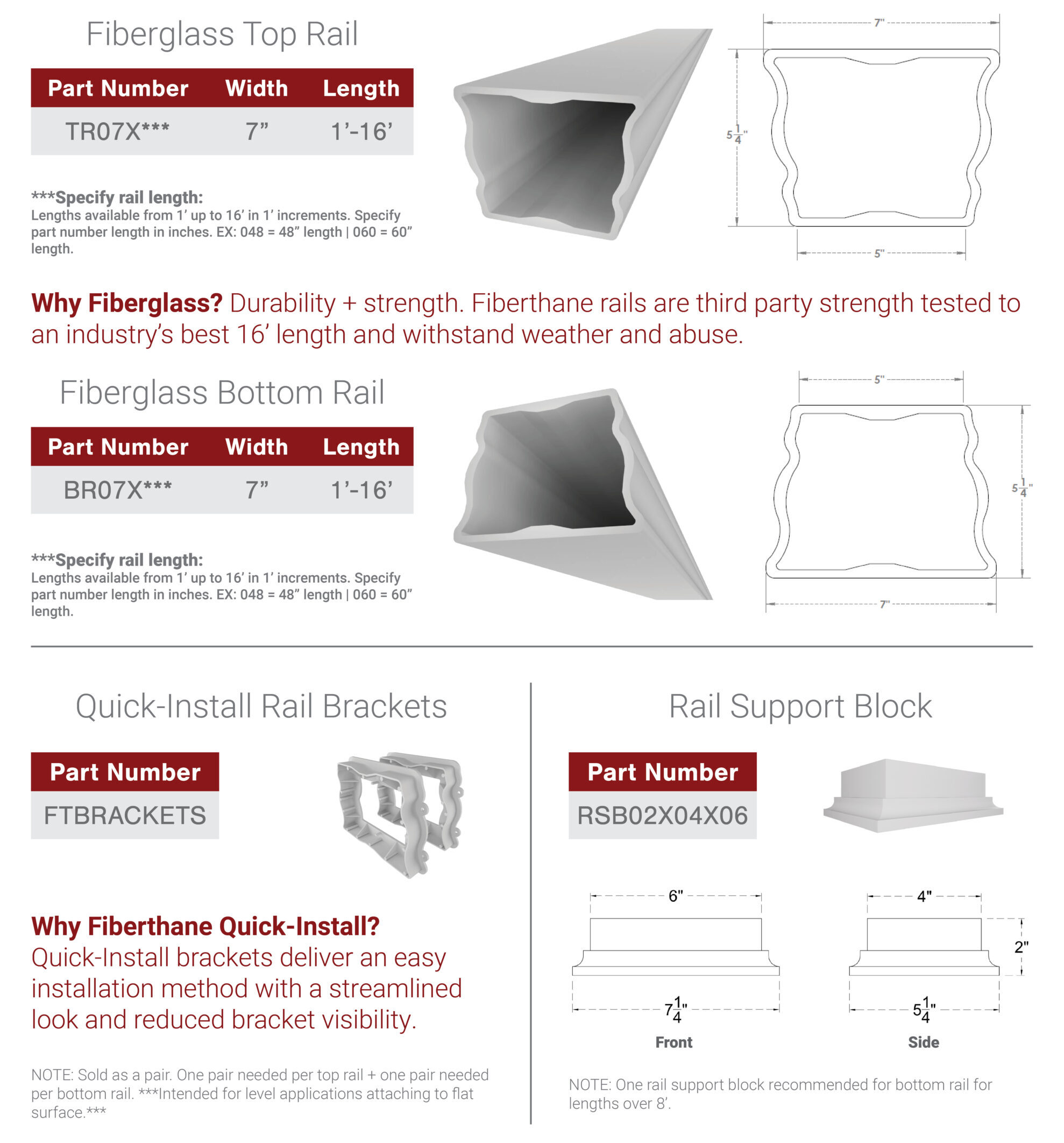

FIBERTHANE BALUSTRADE – RAILS, POSTS, AND ACCESSORIES
